BC | B22 | Bayonet Cap Bronze Un-Switched Lampholder 10mm Entry 10132
£3.39
25 in stock (can be backordered)
BC | B22 | Bayonet Cap Bronze Un-Switched Lampholder 10mm Entry 10132
This BC | B22 | Bayonet Cap Bronze Un-Switched Lampholder 10mm Entry 10132 is the flawless replacement for a sentimental table lamp or a light fitting of your own design. Seamlessly screwing onto a 10mm cord grip or male thread to create a lovely pendant light fitting.
Comes in 4 parts comprising of the cap which comes complete with the Earth tag on the side and is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
The manufacturer of BC | B22 | Bayonet Cap Bronze Un-Switched Lampholder 10mm Entry 10132 is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Due to this beautiful lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Spec:
Lamp Cap: BC | B22 | Bayonet Cap
Height: 45mm
Diameter: 32mm
Min Shade Hole Size: 26mm
Max Shade Hole Size: 32mm
Max Wattage: 60w
Thread Entry: 10mm
Material: Brass
Finish: Bronze

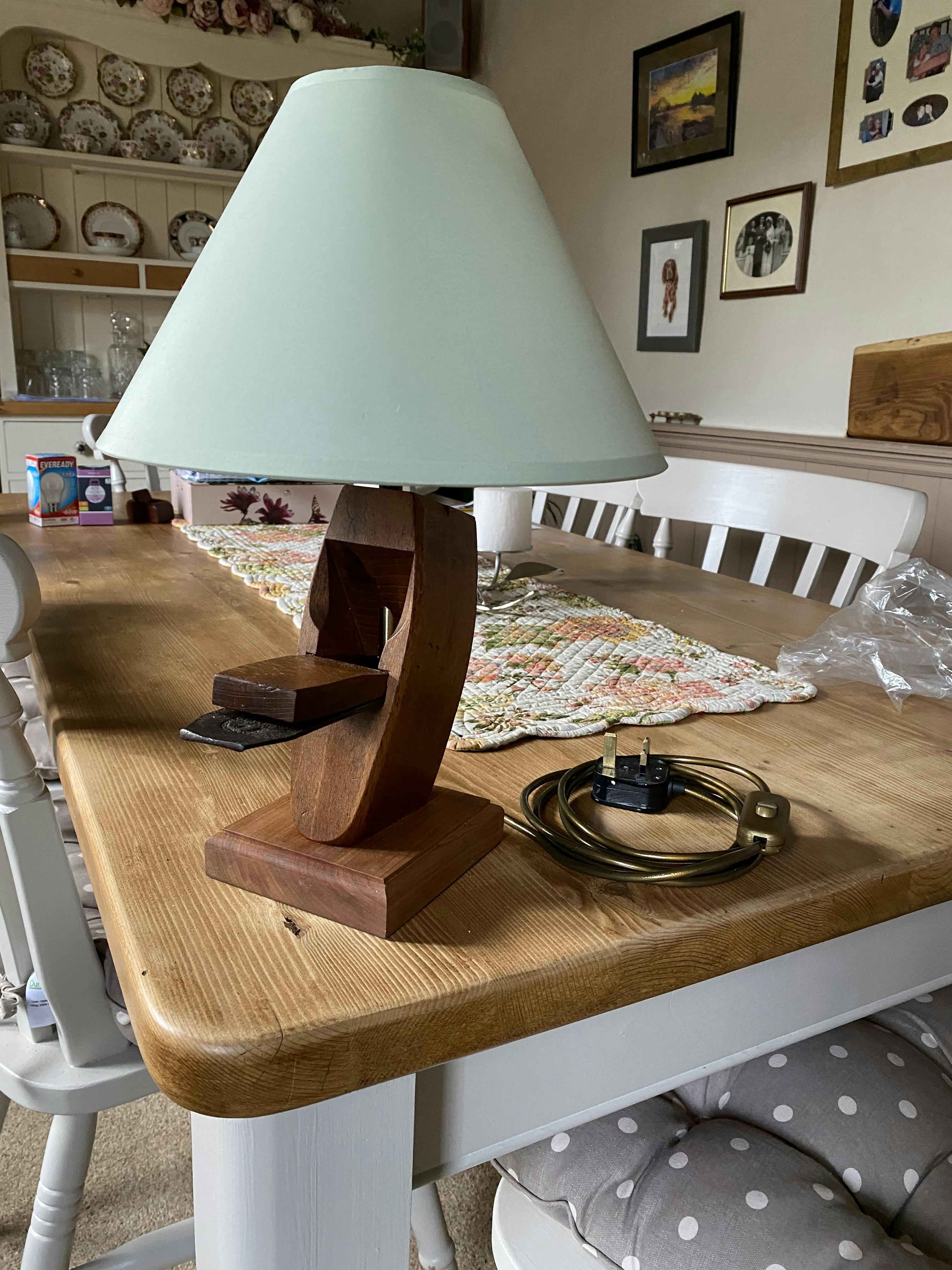

I used this item on a table lamp which I made for my son. I could not make up my mind which type to use at 1st and then chose the BC purely on price. I pln to make some more of these lamps but will chose the ES type next time as I did find that the case of the BC lampholder was rather thin and needed to be reformed to get the bulb in. I guess you get what you pay for.
Perfect for rewiring a vintage lamp!
