White Push Button Switch 66428

White Push Button Switch

White Push Button Switch comes complete with a White Cap and is intended to be panel mounted.
This switch is also found in some foot switched on standard lamps. It is rated at 1 amp.

This switch is single pole meaning you can only switch the Live (Brown) cable through the switch if you have a neutral (blue) and earth (green/yellow) you will need to join them together elsewhere.

Spec:

• Rating: 1Amp
• Body Width: 21mm
• Body Depth: 12.5mm
• Body Height: 8.5mm
• Total Height: 29mm
• Cap max diameter: 15mm
• Panel hole required: 10mm
• Max panel thickness: 2mm

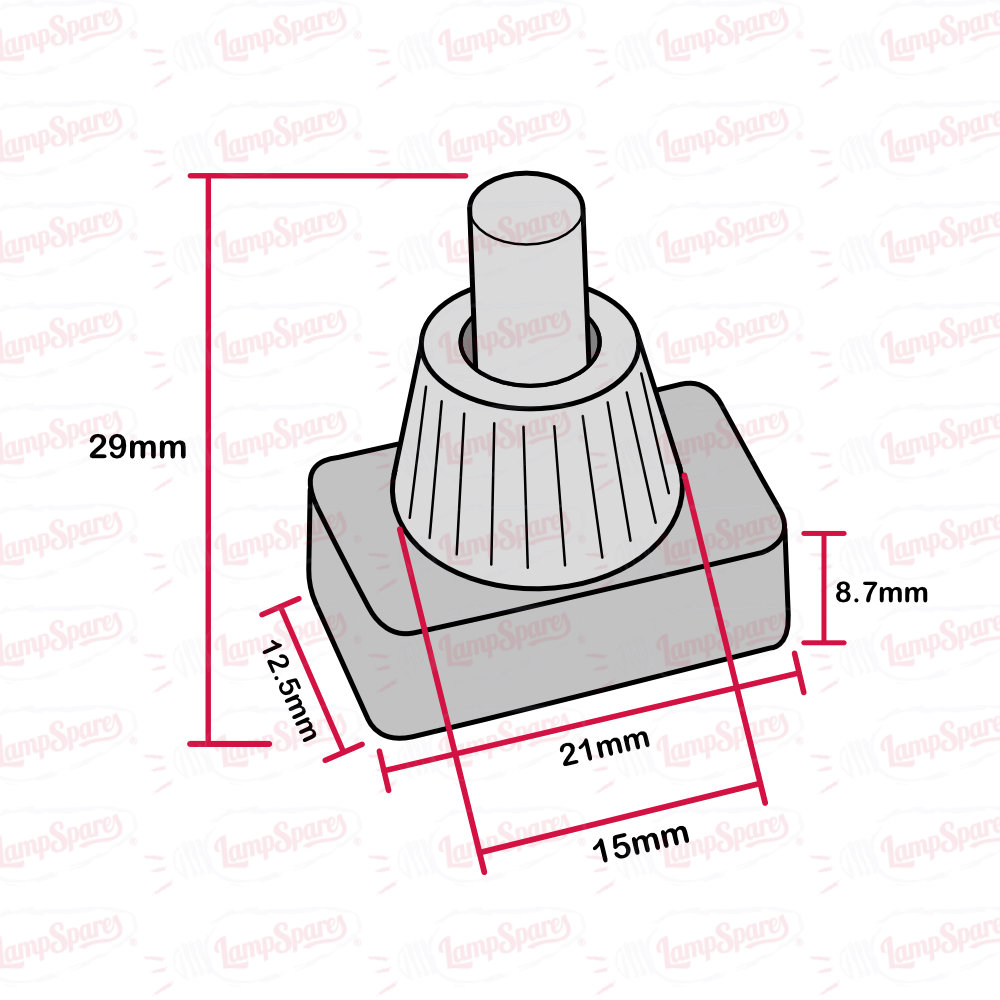

See Additional Images for Detailed Product Drawing with Dimensions
